Plate & Shell Heat Exchangers
Efficient and Compact Plate & Shell Heat Exchangers
Plate and shell heat exchangers are suitable for various industrial fields, with advantages such as efficiency, safety, and compactness. They can be customized according to customer specific process conditions, and are resistant to high temperature, high pressure, and corrosion.
How does a Plate & Shell Heat Exchanger work?
The corrugated plate generates high turbulence in the fluid, and its heat transfer efficiency is much higher than that of traditional shell and tube heat exchangers. The size of plate heat exchangers with the same heat transfer performance is many times smaller. The corrugated plate has a regular corrugated surface and different corrugated angles, which can be adjusted to achieve the perfect match between heat transfer and pressure drop.
The cylindrical shell is very suitable for high temperature and high-pressure conditions, and can withstand high temperature and pressure impacts. The fluid on both sides can be distributed through a guiding plate for a single pass or multiple pass configuration, and the number of passes on both sides can be designed separately according to the working conditions.
Nexsons Plate & Shell Heat Exchanger options

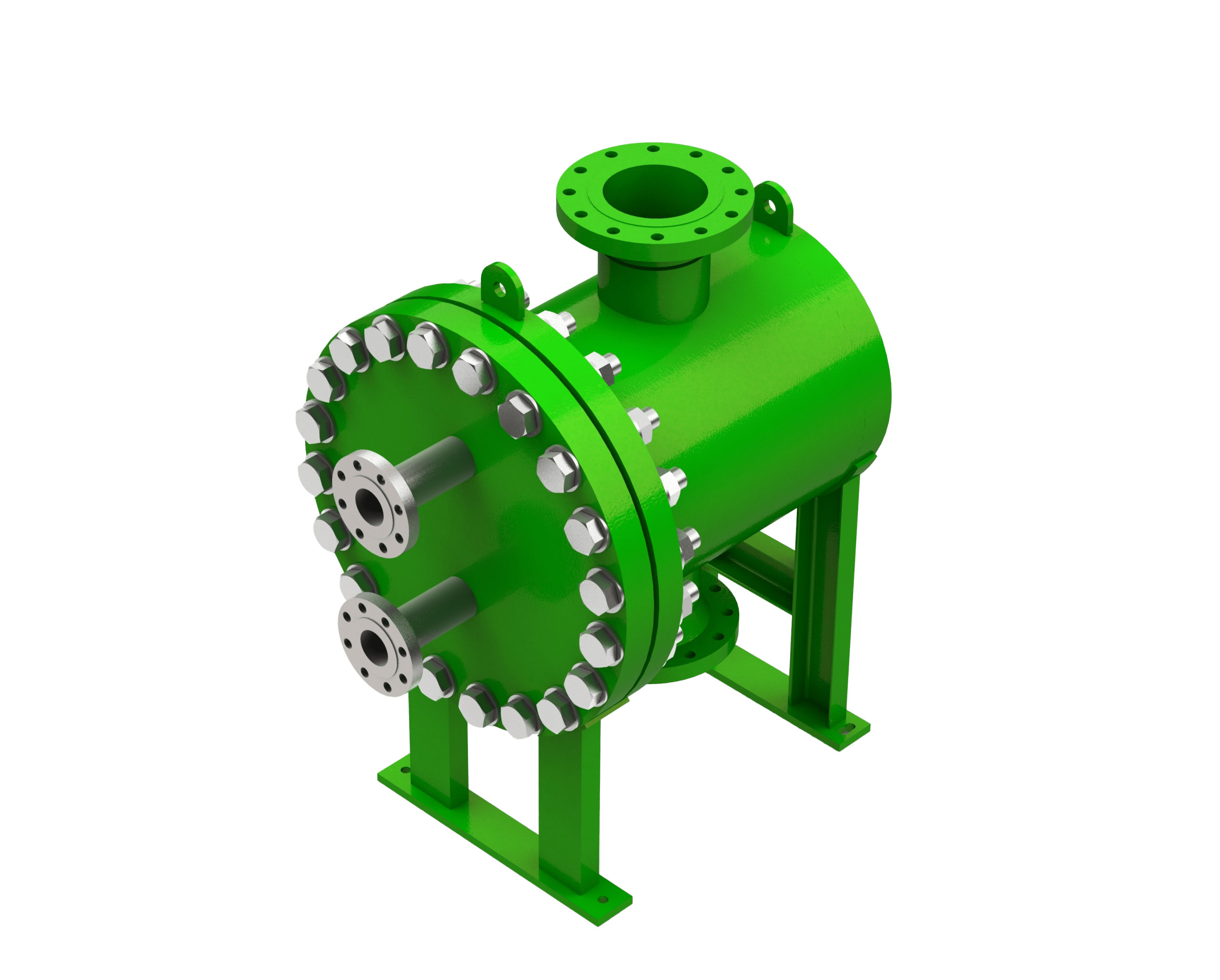

Openable Plate & Shell Heat Exchangers
Nexson Openable Plate and Shell Heat Exchangers provides enhanced flexibility by enabling the plate pack to be withdrawn from the shell for inspection or mechanical cleaning. This is made possible by its flanged and bolted shell design. The plate pack allows for swift removal and refitting, minimizing process downtime.
The welded plate core is filled and fixed in the circular shell, and there are no sealing gaskets between the plates. It can be applied in corrosive, high-temperature, and high-pressure environments.

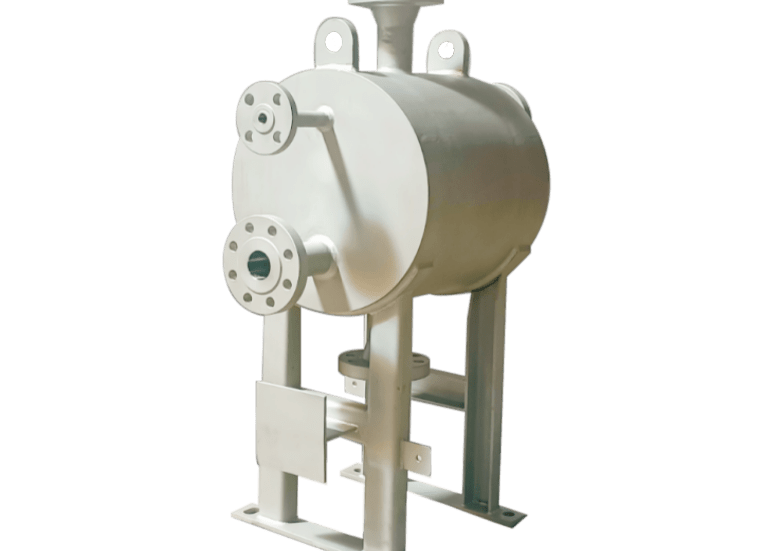

Fully Welded Plate & Shell Heat Exchangers
The core component of Nexson Fully Welded Plate and Shell Heat Exchanger is a fully welded plate pack enclosed within a robust shell, eliminating the need for gaskets. Both the plate pack and the shell are entirely welded, yet they remain separate, allowing for expansion and contraction in response to temperature changes.
The circular plate design ensures uniform stress distribution, enhancing durability and performance.
Kettle Reboiler Plate & Shell Heat Exchanger
Nexson Kettle Reboiler Plate & Shell Heat Exchanger is a compact, fully welded plate & shell kettle reboiler designed for high-efficiency evaporation in demanding applications. Operating as a flooded evaporator, it maintains the refrigerant in a submerged state for optimal heat transfer.
Ideal for refrigeration, heat pump, and ORC cycles, it evaporates media like ammonia using a hot stream in counter-current flow. The integrated manifold ensures effective phase separation, while minimizing shell size, wall thickness, and fluid volume — resulting in reduced operational costs.
AVAILABLE MATERIALS
Plates materials
316L
904L
254 SMO
Alloy C22, C276
Titanium gr.1, gr.11 • Nickel
Others on request
Shells materials
Carbon steel
316L
904L
254 SMO
Alloy C22, C276
Duplex
Titanium
Others on request
Plate and Shell - Plate Range
Main Features & Advantages
COMPACT STRUCTURE
The fully openable welded plate shell heat exchanger has a compact structure and requires very little space for installation and maintenance.
EFFICIENT HEAT EXCHANGE
The unique plate pattern design enables the fully openable welded plate shell heat exchanger to generate efficient heat transfer efficiency and achieve a very close end temperature difference.
SAFE AND RELIABLE
The cylindrical shell is the optimal shape for pressure vessels, with smaller material thickness and weight compared to other structural devices, while ensuring high pressure and reliability.
LOW MAINTENANCE
Our fully openable welded plate shell heat exchanger features a welded construction, ensuring reliability and easy maintenance. With no gaskets, the risk of breakage or leakage is eliminated. Additionally, they are highly resistant to fouling.
